Elite
Wireless Electrochemical Workstation
Redefining electrochemical analysis with a palm-sized, wireless potentiostat. Lab-grade precision for biosensing and materials research, anywhere.
Precision Meets
Portability.
Gone are the days of bulky, rack-mounted potentiostats tethered to desktop computers. The Elite EDC series compresses high-fidelity electrochemical measurement technology into a compact, wireless module.

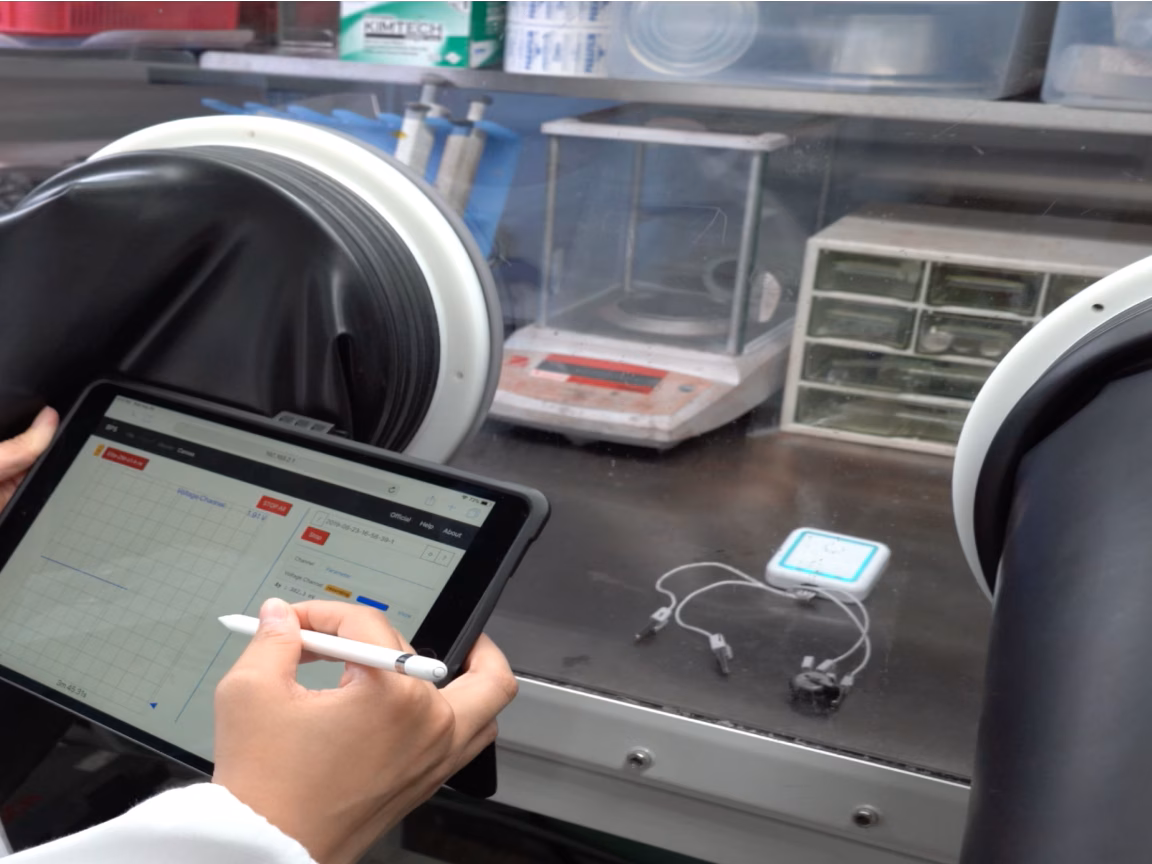

Whether inside a glovebox, an incubator, or out in the field, Elite delivers reliable data on Cyclic Voltammetry (CV), I-V curves, and Amperometry directly to your browser.
Uncompromised Performance
Compact and lightweight design for easy portability
Wireless data transmission in real-time
Effortless data acquisition and streamlined management
Effortless Control.
Real-time Visualization.

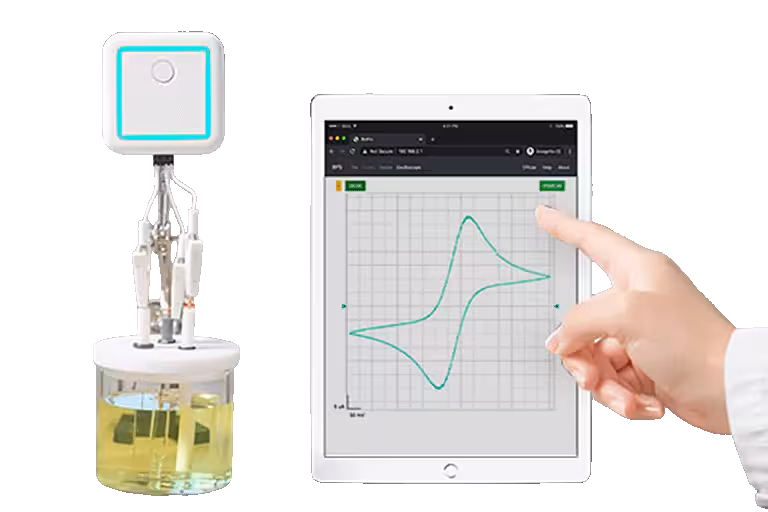

The Elite system is controlled via a modern, responsive web interface hosted directly on the Controller.
- Real-time plotting of I-V curves and CV cycles
- Instant parameter adjustment during live experiments
- One-click data export to CSV for Excel/Matlab
- Visual identification of connected devices via LED
Research Applications
Biosensor Development
Characterize novel sensing materials (e.g., Graphene, Carbon Nanotubes) with precise CV scans.
Point-of-Care Testing (POCT)
Develop rapid diagnostic platforms for detecting glucose, lactate, or specific biomarkers.
Environmental Monitoring
Field-deployable solution for detecting heavy metals or pollutants in water sources.
Energy Storage
Basic characterization of micro-batteries and supercapacitors.
Wearable Bio-electronics
Testing flexible electrodes for sweat analysis or non-invasive health monitoring.
Education
Safe, easy-to-use platform for teaching electrochemistry fundamentals in university labs.

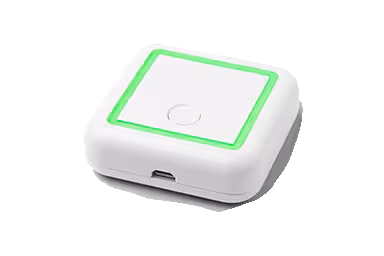

Technical Specifications
| Feature | EDC-03 | EIS-01 | EIS-mini | TRIG-01 |
|---|---|---|---|---|
| Voltage Output | ±5.0 V (Res.: 0.6 mV) | ±2.0 V (Res.: 0.1 mV) | ±2.0 V (Res.: 0.1 mV) | Time res.: ~ 50 ms |
| Voltage Input | ±5.0 V (Res.: 0.6 mV) | ±2.0 V (Res.: 0.1 mV) | ±2.0 V (Res.: 0.1 mV) | Max. current regulation range: 200.0 mA/ch. and total 800.0 mA |
| Current Input | ±15.0 mA (Res.: 1 nA) | ±3.0 mA (Res.: 1 nA) | ±3.0 mA (Res.: 1 nA) | |
| Frequency | 15 mHz ~ 200 kHz | 15 mHz ~ 200 kHz | ||
| Sample rate (sps) | 0.01 - 100 | 0.01 - 100 | 0.01 - 100 | |
| Size (L×W×H) | 60 x 60 x 19 mm | 60 x 60 x 19 mm | 20 x 30 x 8 mm | Ø70 x 20 mm |
| Weight | ~ 60 g | ~ 60 g | ~ 50 g | |
| Functions | IV-curve, Constant Current, V, I, R-t Monitoring, Voltammetry (OCP, CV, LSV, CA, CP, DPV), Pulse | EIS, CF, CV, CA, CP, LSV, DPV, OCP, V-I-R Monitoring | EIS, CF, CV, CA, CP, LSV, DPV, OCP, V-I-R Monitoring | 2 channels of isolated switches 2 channels capable of 5V output 4 channels of current regulators 2 channels of trigger input |
Upgrade your
Bio-chemical Lab today.
Experience the freedom of wireless electrochemistry. Contact us for pricing or technical inquiries.
